01
Ground floor plan

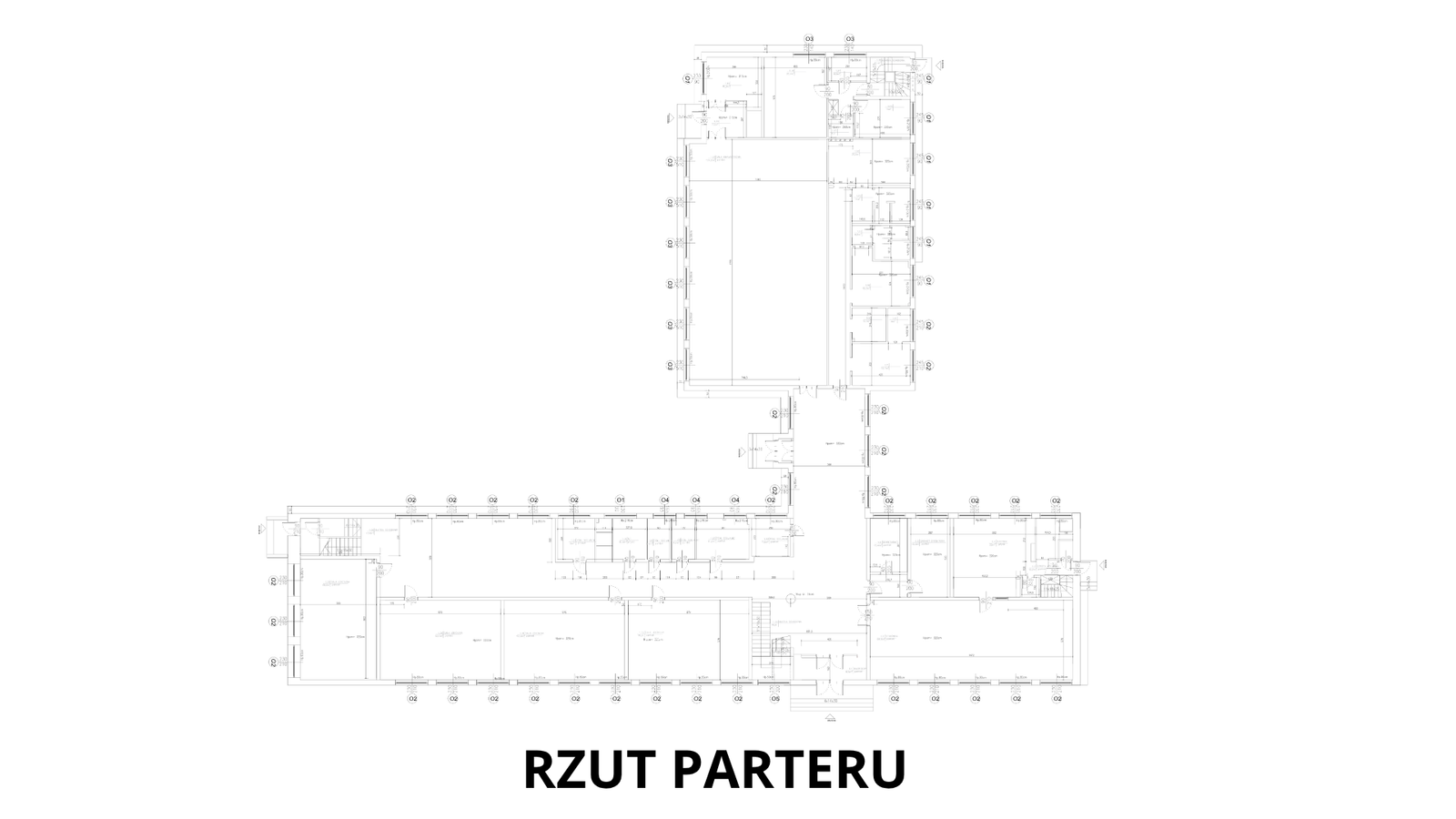

floor planGround floor plan with dimensions and joinery references. The sports hall with its back-of-house sits at the top; the teaching wing runs along the horizontal axis with classrooms on both sides of the corridor.
04 / Technical work
From the idea to the precise line.
Dimensioned floor plans with joinery schedules and a full set of four elevations. Every sheet opens in a zoomed view.
- Project
- School in Parszów
- Documentation
- 7 sheets
- My role
- All drafting work
- Software
- AutoCAD
Sheet index
Click a sheet to open the zoomed view
02
First floor plan

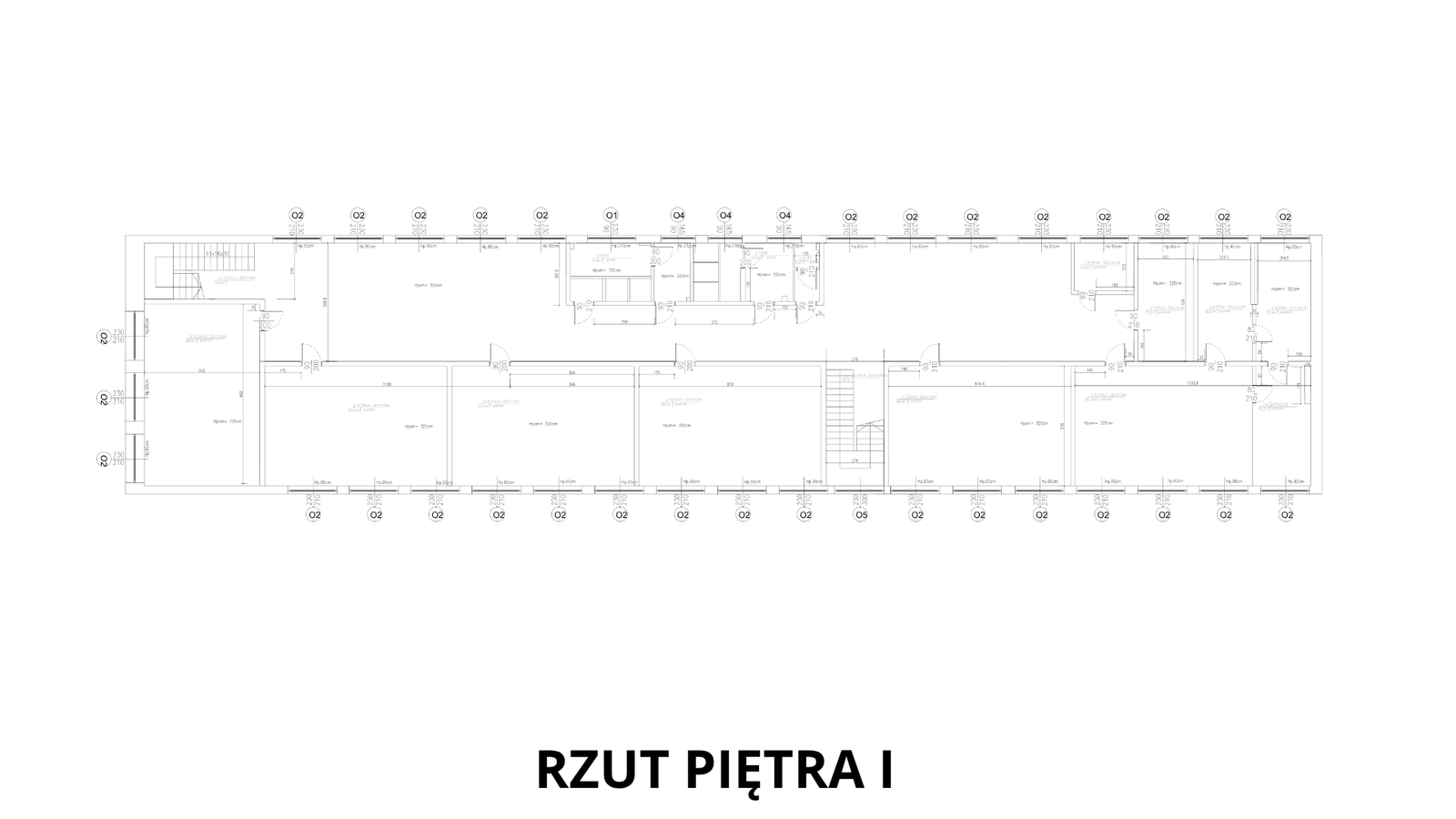

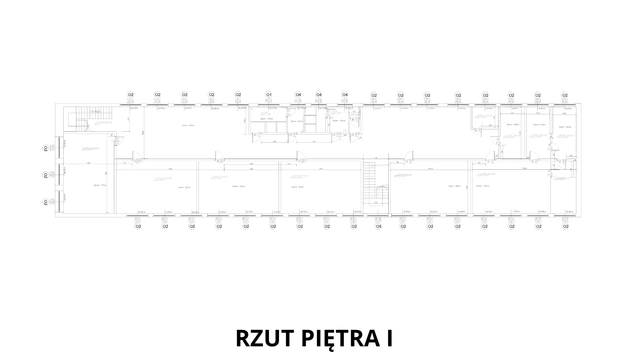

floor planFirst floor: a repeating layout of classrooms on both sides of the corridor, stair cores at each end and staff facilities in the east wing.
03

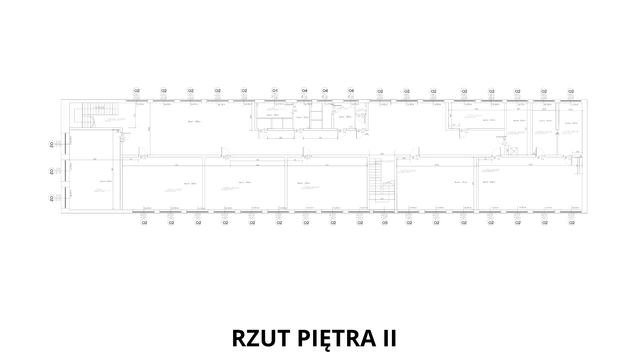

Second floor plan

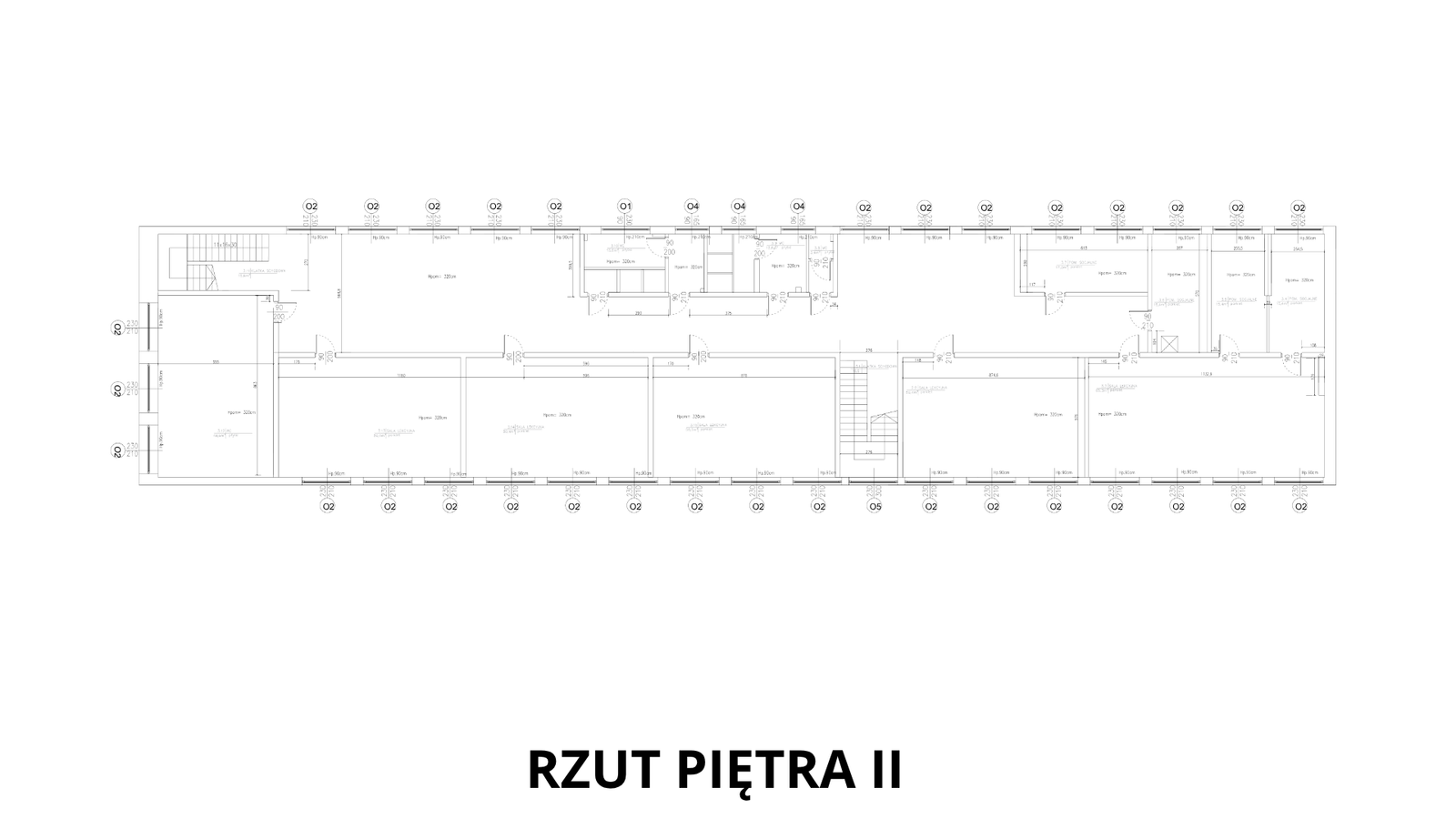

floor planThe second floor repeats the first, with a lift and additional staff rooms in the east wing. The drawing carries full dimensions and joinery references.
04

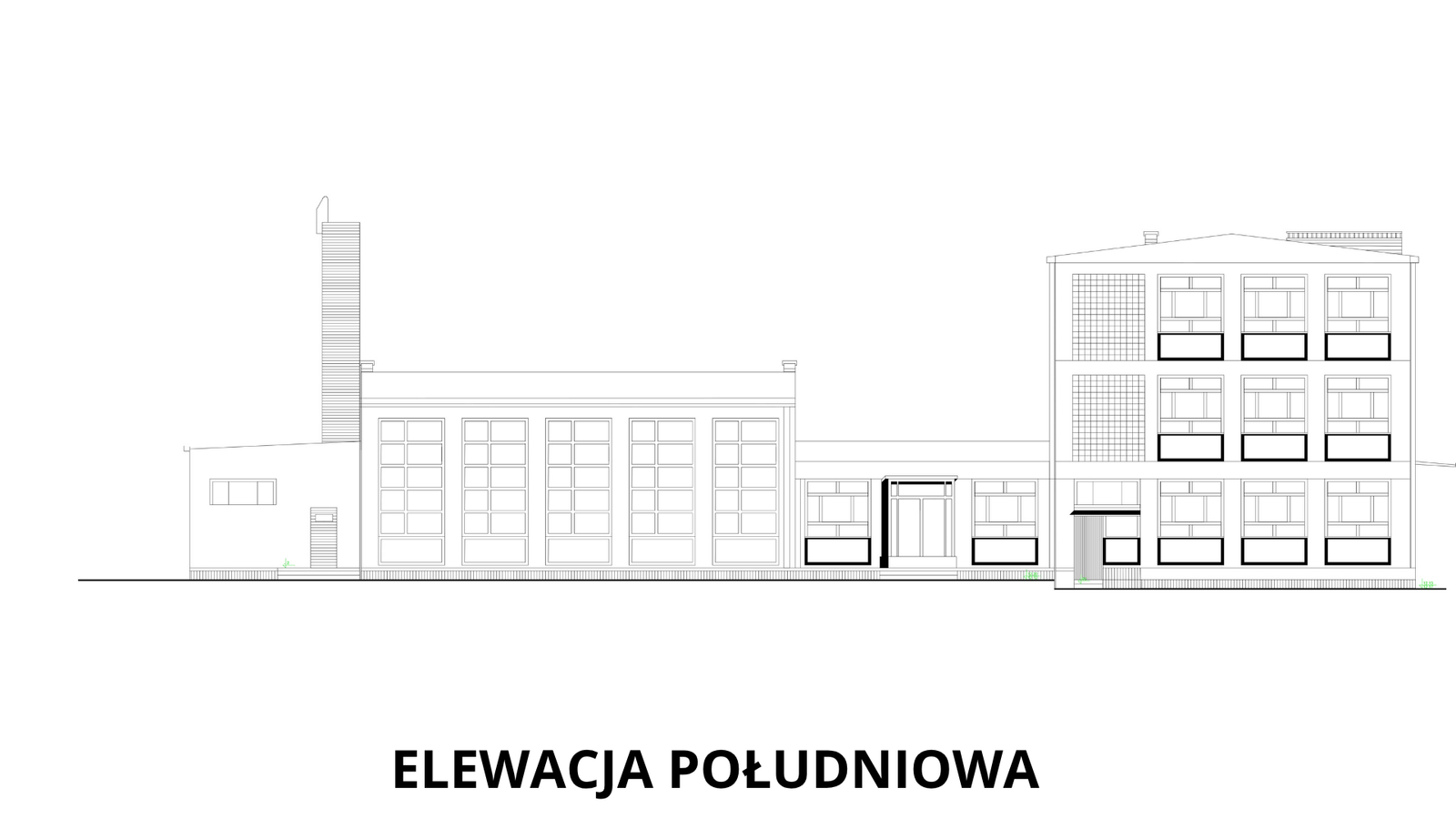

South elevation
elevationThe entrance front: the sports hall on the left, a glazed central section with a canopied entrance and the three-storey teaching wing on the right.
05
North elevation

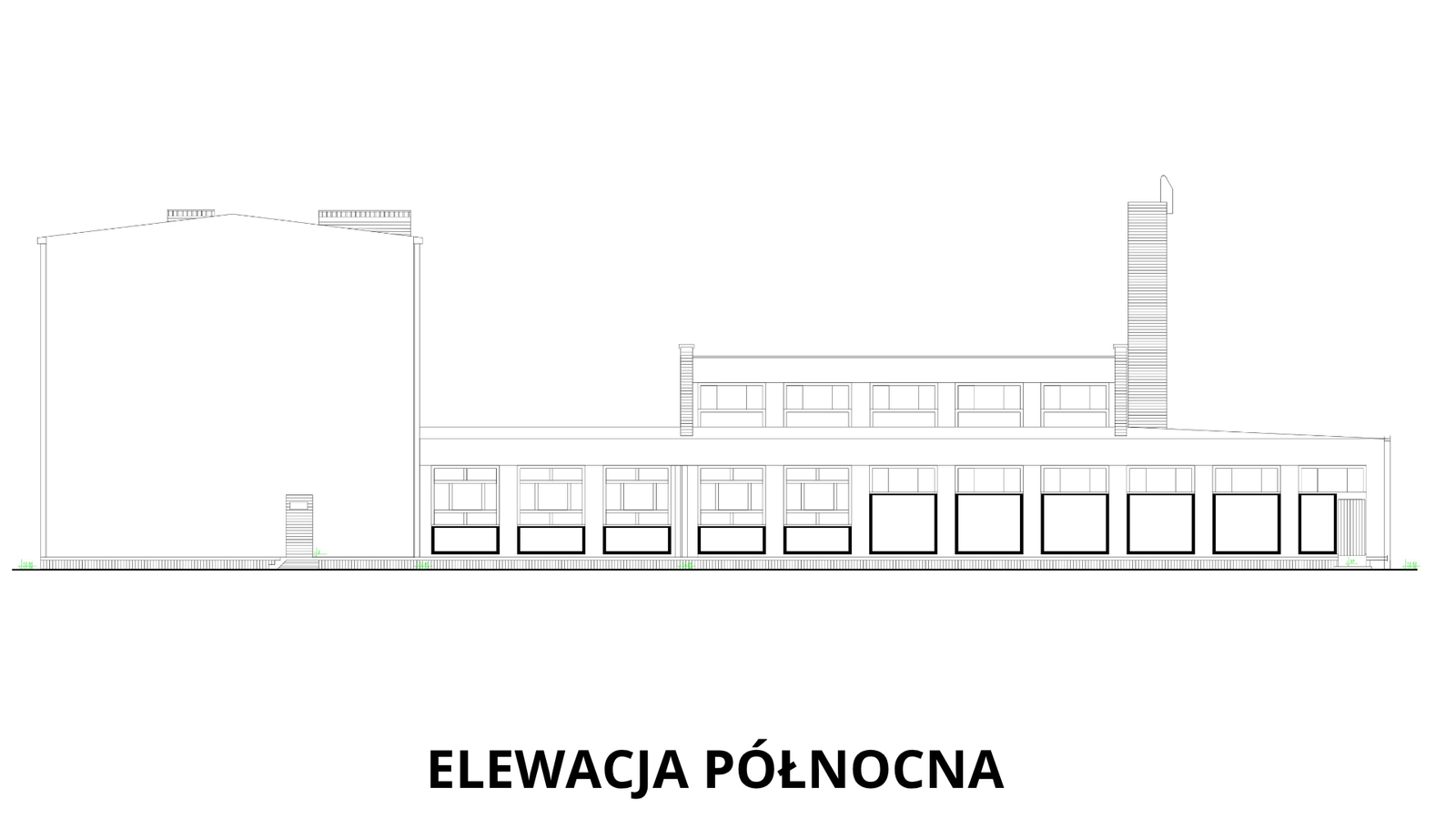

elevationSeen from the north: the tall volume of the sports hall on the left and the lower teaching block with its band of windows, ventilation stack and service entrance.
06

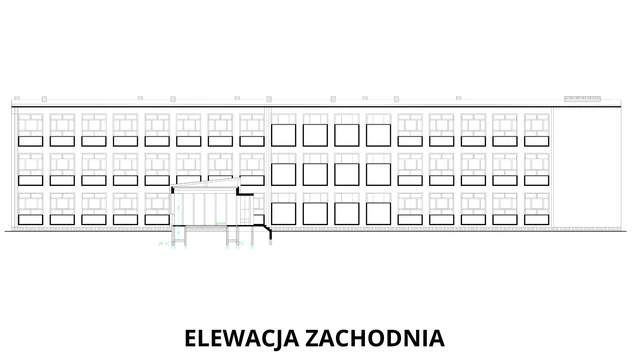

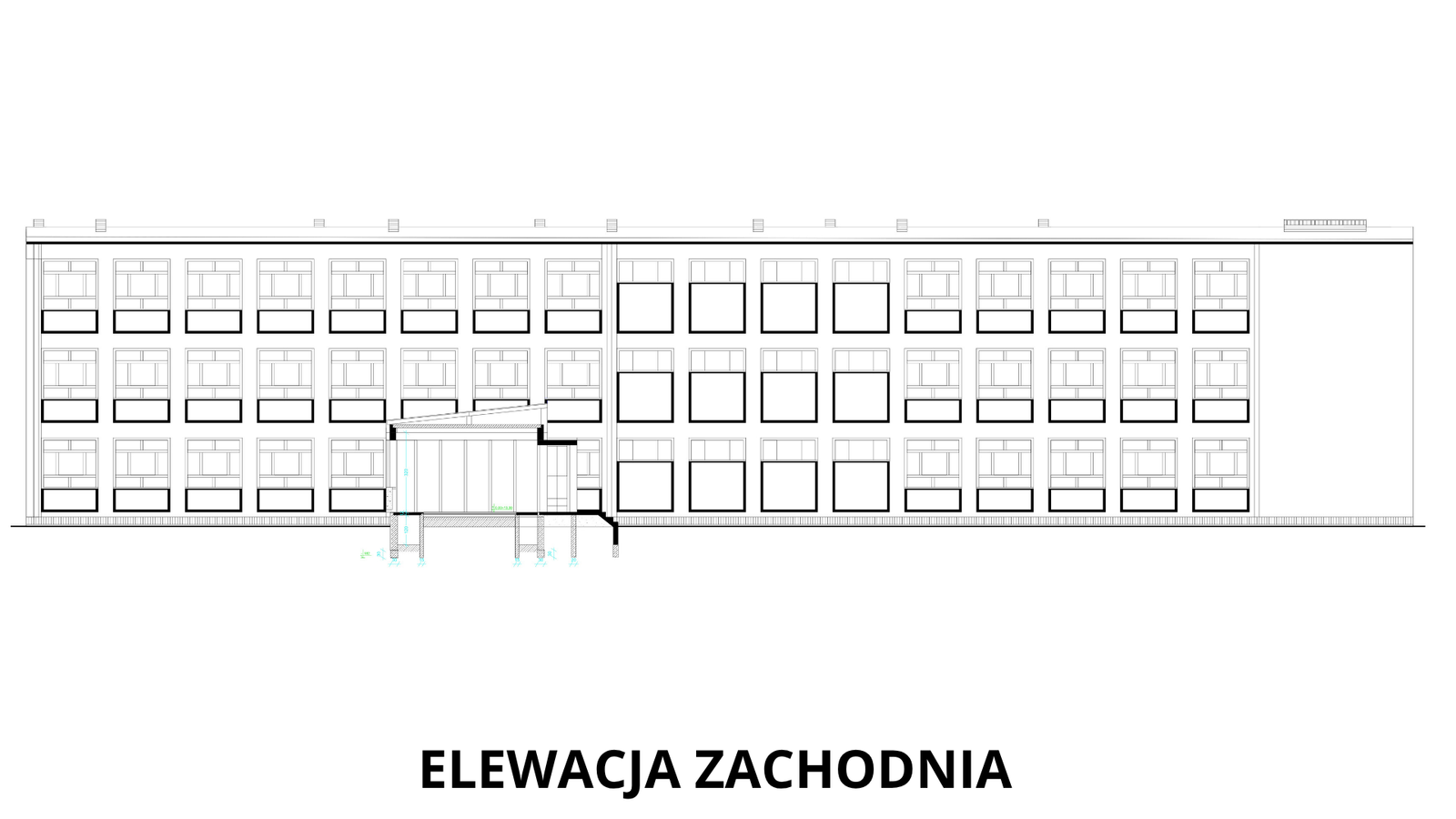

West elevation
elevationThe longest view of the building: three storeys of repeating classrooms with a regular window rhythm, and a canopied side entrance in the middle of the elevation.
07
East elevation

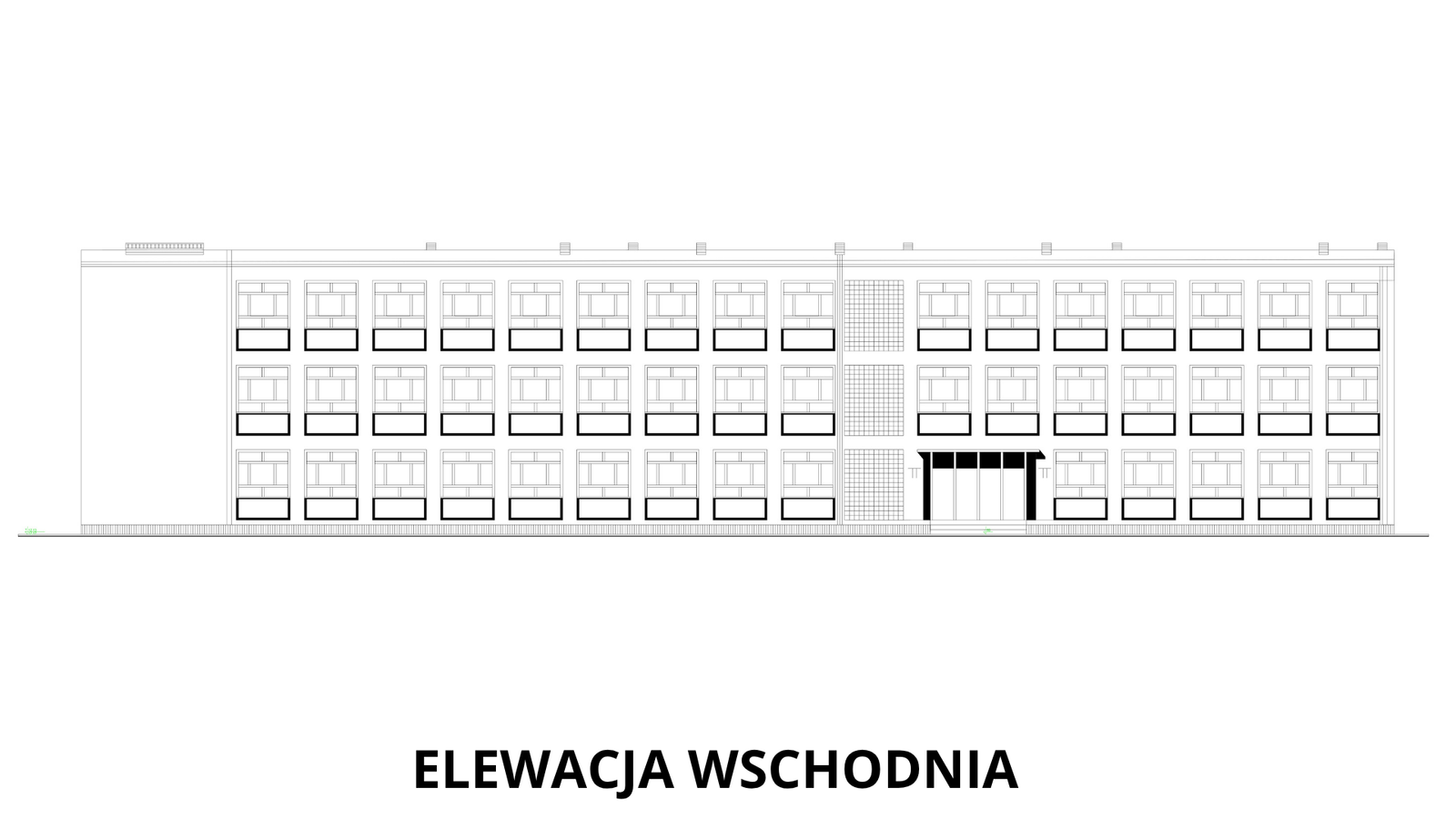

elevationSeen from the sports pitch, with the full rhythm of classroom windows across three storeys, a glazed link and the entrance in the middle.
